How to Stop Micromotor Vibration During Jewelry Setting
Views : 0
Update time : 2026-06-26 18:58:26
In precision jewelry making, even a micron-level vibration in your micromotor handpiece can cause a graver to slip or shatter a high-value gemstone. When your tool loses its rock-solid stability, it compromises your work, causes hand fatigue, and signals mechanical wear. This guide provides a systematic troubleshooting process to isolate the root causes of handpiece vibration and extend its operational lifespan.
I. Primary Check: Burs and Bits
When diagnosing unexpected instability, look at the most accessible variables first. Roughly 70% of minor vibrations stem from replaceable rotary accessories rather than a fundamental failure inside the power unit.

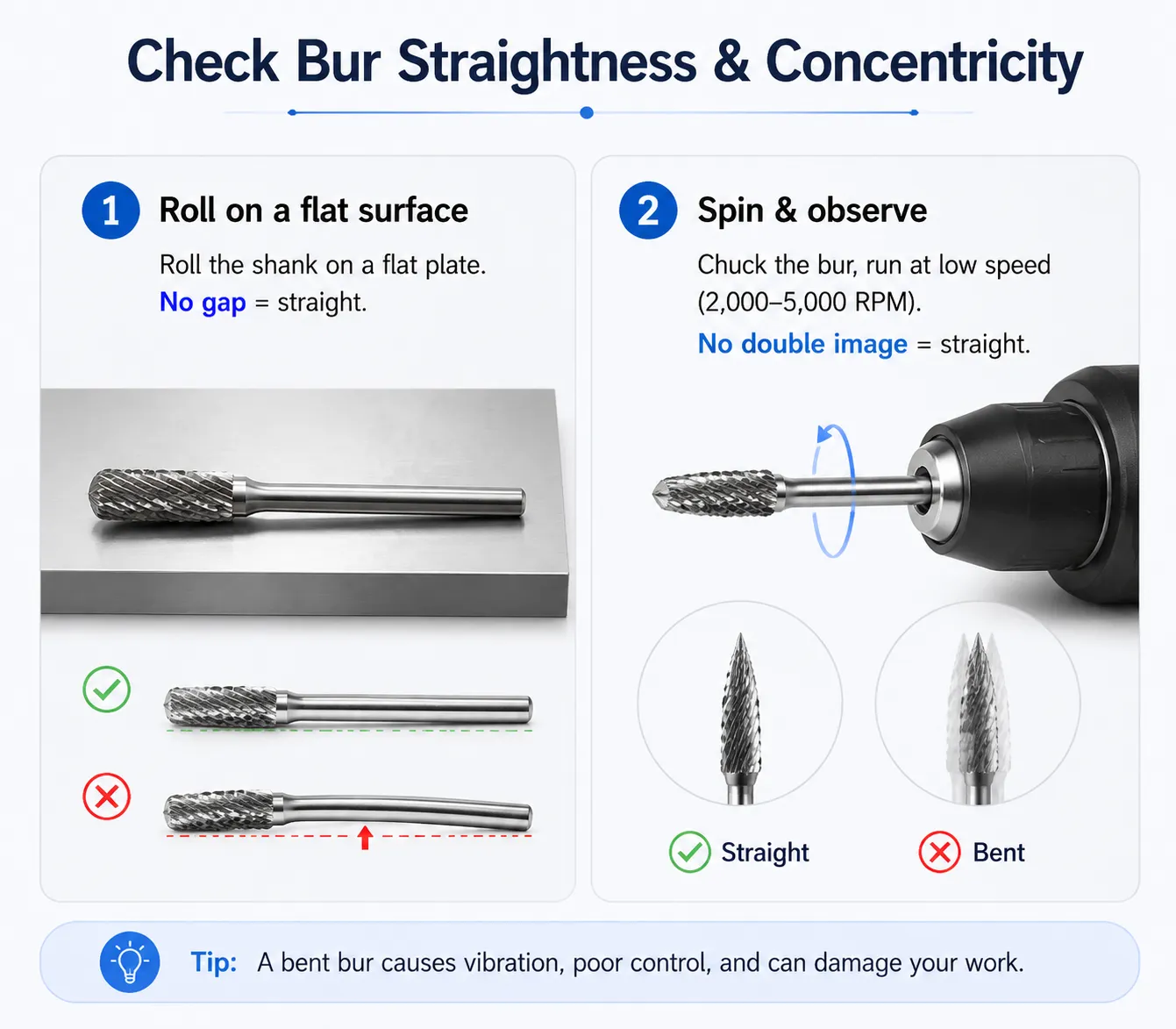

Bur Straightness & Concentricity
Low-quality burs or accessories that have accidentally dropped onto a concrete studio floor can easily develop a slight eccentricity. Even a microscopic bend in a tungsten carbide bur becomes a violent wobble when spun at high speeds.
Action: Remove the accessory and roll the bur shank across a perfectly flat surface, such as a steel workbench plate or a piece of leveling glass. Watch closely for any gaps or uneven light passing underneath the shank. Alternatively, chuck the bit into the handpiece, run the tool at a low speed (2,000–5,000 RPM), and observe the bur tip. If the profile creates a blurred "double image," the accessory is bent and must be discarded.

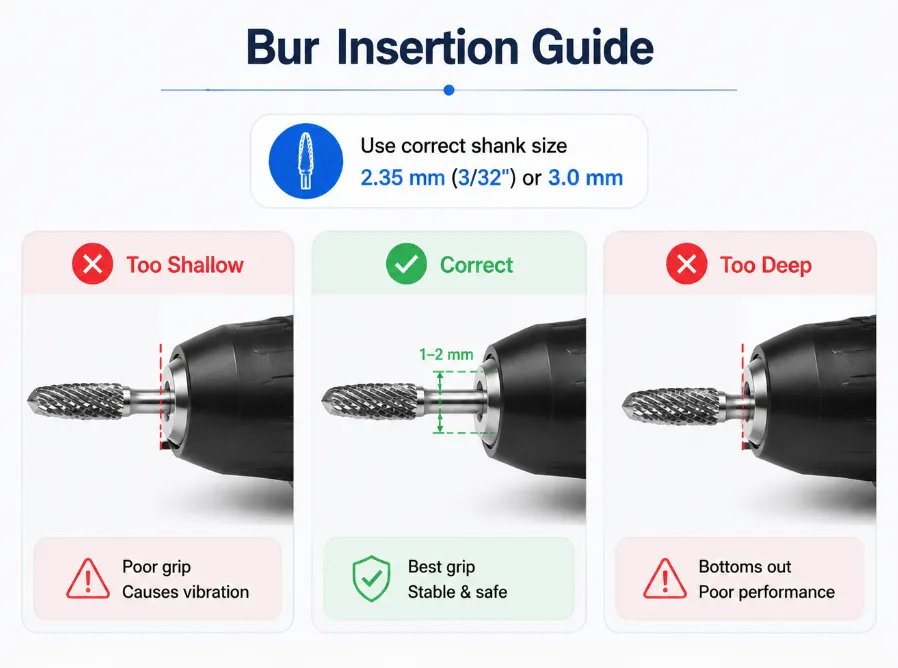

Insertion Depth and Specification Matching
The bur shank diameter must strictly match the structural dimensions of your handpiece’s internal gripping mechanism. Most professional jewelry micro-processing systems rely on a standard 2.35 mm (3/32'') or 3.0 mm shank specification.
Guidelines: Never leave a bur hanging halfway out at the edge of the opening to achieve extra reach. Fully insert the bur shank until it bottoms out inside the spring collet, then pull it back out by roughly 1–2 mm before engaging the locking mechanism. This minor manual adjustment provides a vital safety margin, ensuring the chuck grips the truest, most balanced portion of the steel shank.
II. The Core Hardware Check: Cleaning & Replacing the Collet
Jewelry bench work is inherently dirty. Precision stone setting produces significant amounts of fine metal particulate matter, making the opening of the handpiece highly susceptible to structural contamination.

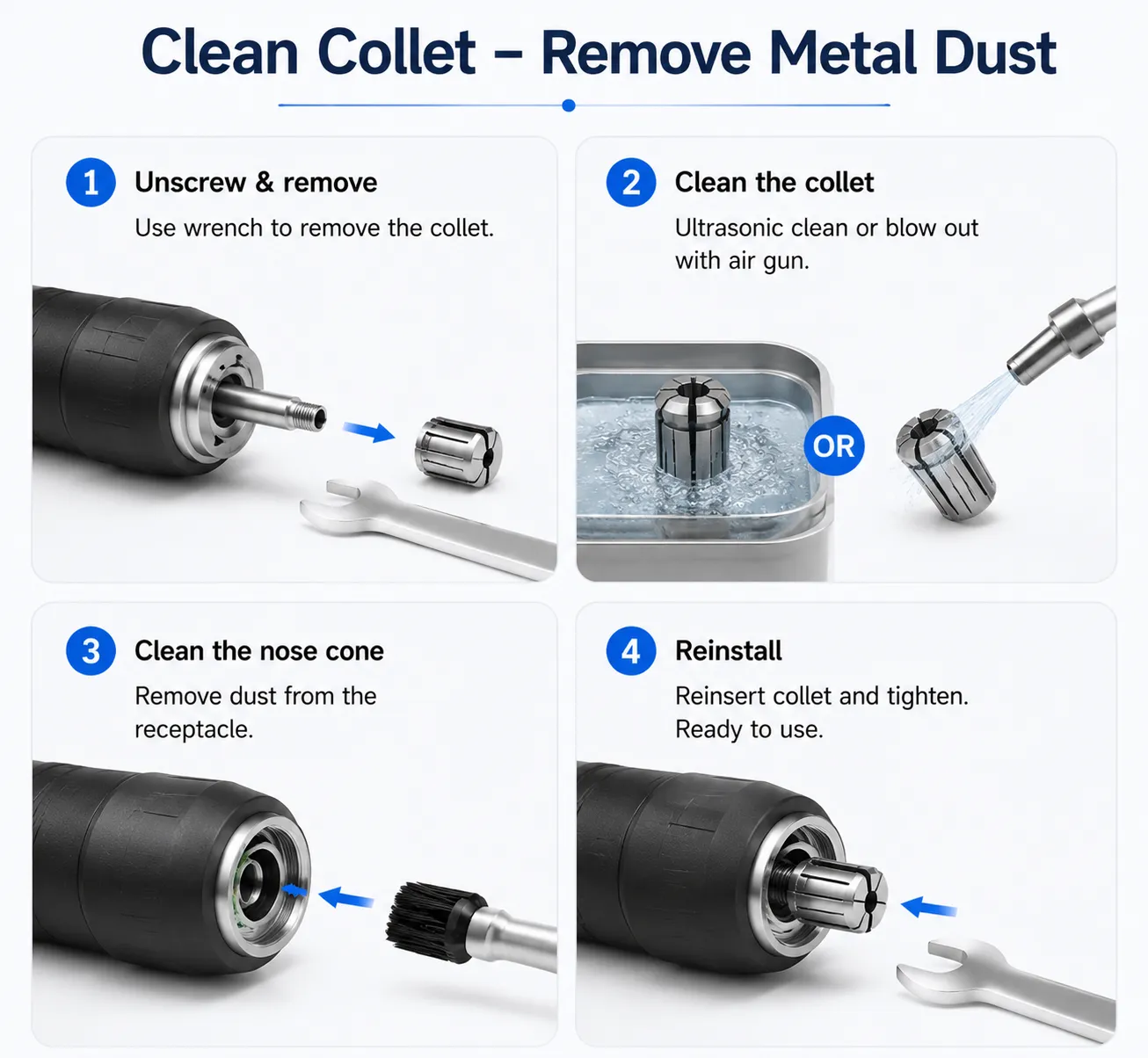

Removing Precious Metal Dust
Fine gold, silver, and platinum shavings, alongside sticky particles from abrasive polishing waxes, easily migrate inside the handpiece tip. Once these debris pack into the narrow slits of the spring collet, the jaws can no longer apply uniform, concentric clamping force around the bur shank.
Action: Using your tool’s included maintenance wrench, unscrew and completely remove the collet from the main spindle assembly. Submerge the component in an ultrasonic cleaner filled with an engineering degreaser for a few minutes, or use a high-pressure air gun to blow out any packed precious metal dust from the internal slots. Clean the matching receptacle inside the nose cone before reinstalling.

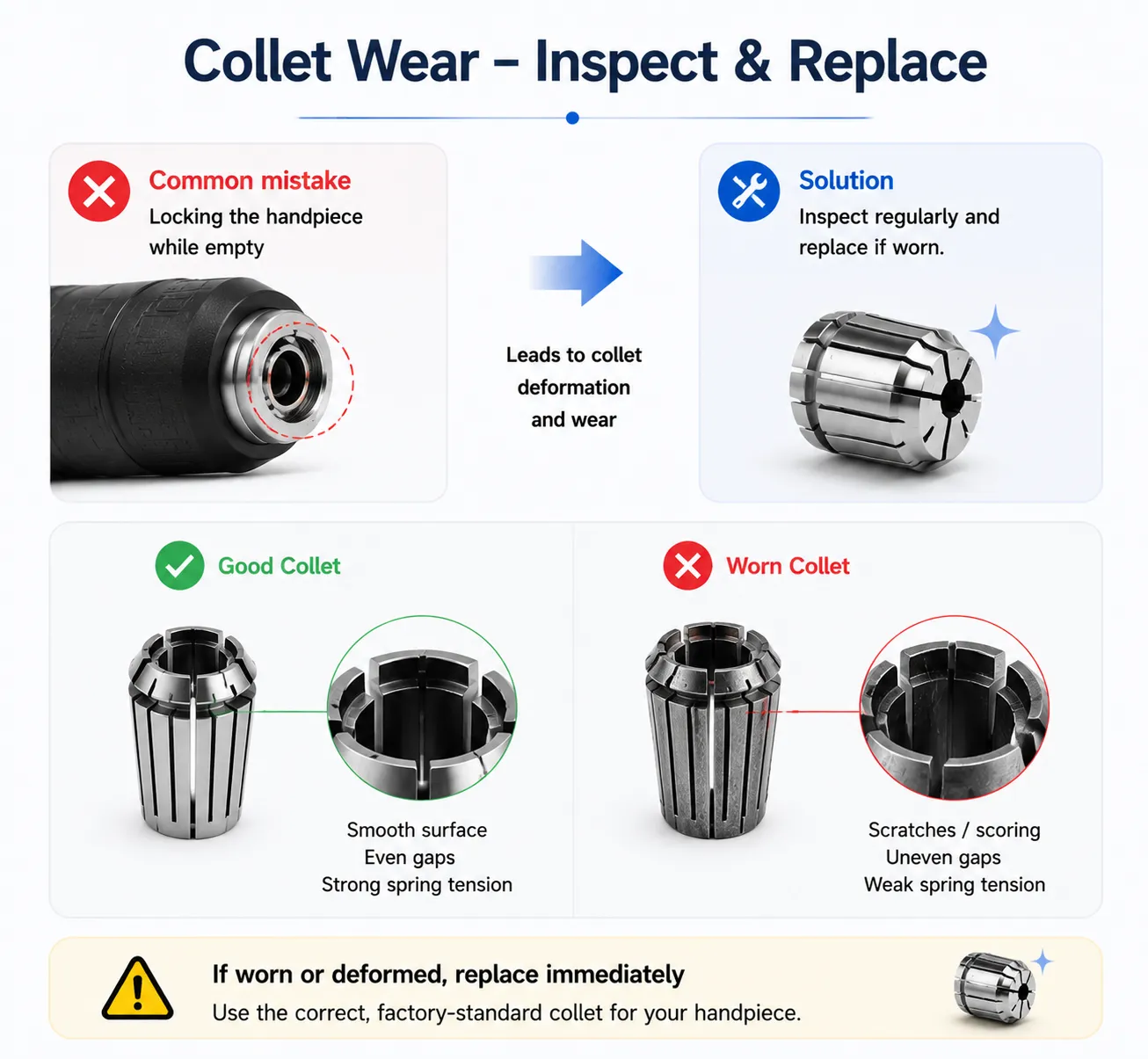

Collet Metal Fatigue and Deformation
Components wear down over time. Prolonged high-intensity clamping forces, or the common bad habit of "locking the handpiece while empty" (engaging the rotary chuck mechanism without a test rod or bur shank inside), will cause permanent mechanical deformation of the spring steel jaws.
Solution: Closely inspect the inner walls of the collet using a jewelry loupe to look for deep structural scratches, scoring, or uneven gaps. If the jaws have lost their spring tension or exhibit physical wear, replace the component immediately with a new factory-standard collet matching your device's exact technical specifications.
III. The Internal Mechanical Check: Worn Bearings & Spindle
If your handpiece continues to shake or wobble even when running without a bur inserted, the problem resides deeper within the internal mechanical drivetrain.

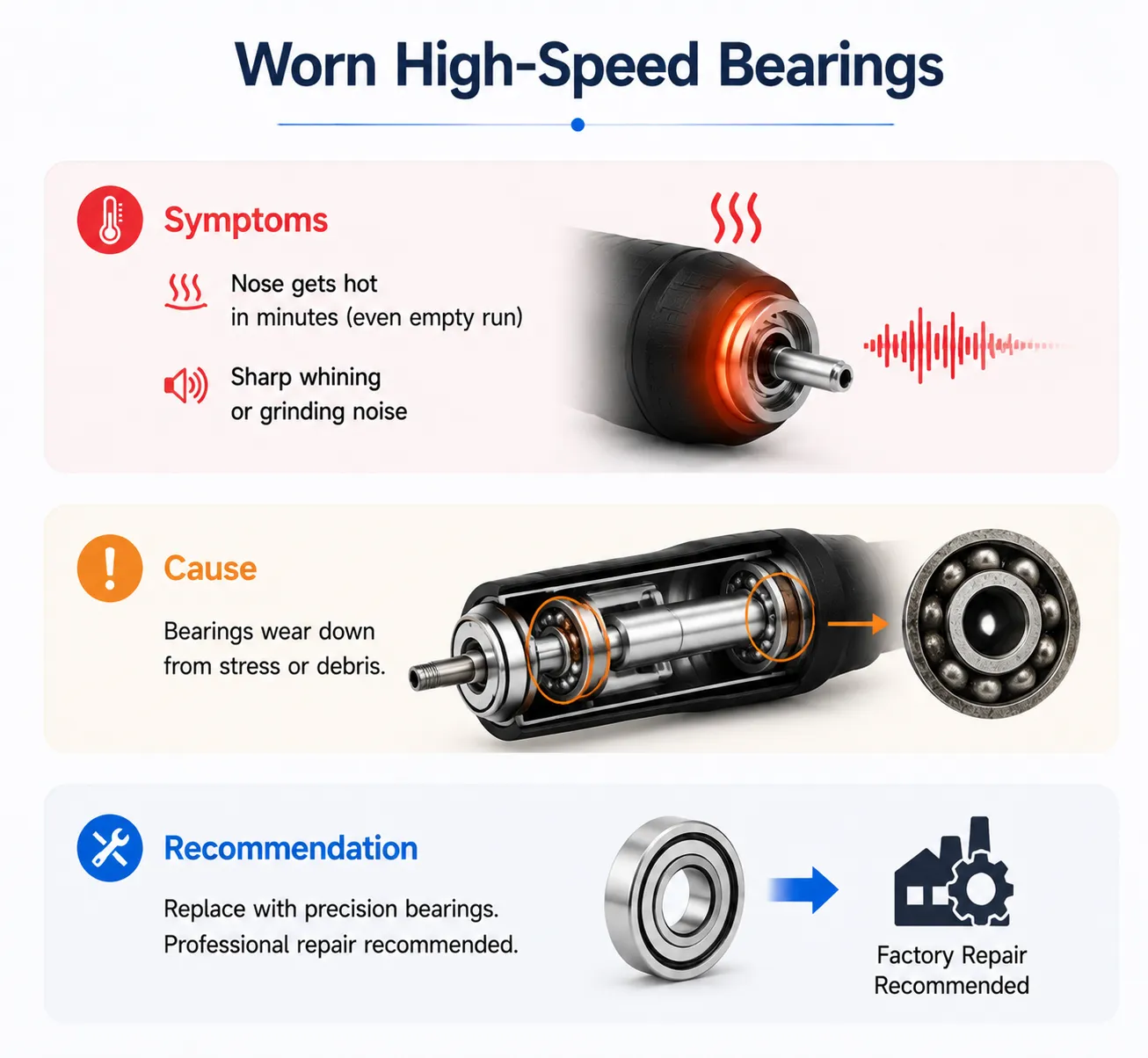

Worn High-Speed Bearings
Professional bench micromotors typically utilize 2 to 4 sealed miniature ball bearings engineered to withstand rotational speeds anywhere from 35,000 to 50,000 RPM. Over months of heavy production usage, immense radial stress or microscopic debris bypasses the outer protective shields, causing the internal lubrication to break down and the steel balls to wear unevenly.
Symptoms: The nose section of the handpiece becomes noticeably hot to the touch within just a few minutes of use. This structural heating occurs during no-load operation (running completely empty) and is almost always accompanied by a sharp, high-frequency whining or grinding noise.
Recommendation: Resolving this requires installing specific, balanced precision bearings (such as specialized front and rear assemblies). Because improper installation can permanently warp the internal electronic alignment, a professional factory repair service is highly recommended for non-technicians.

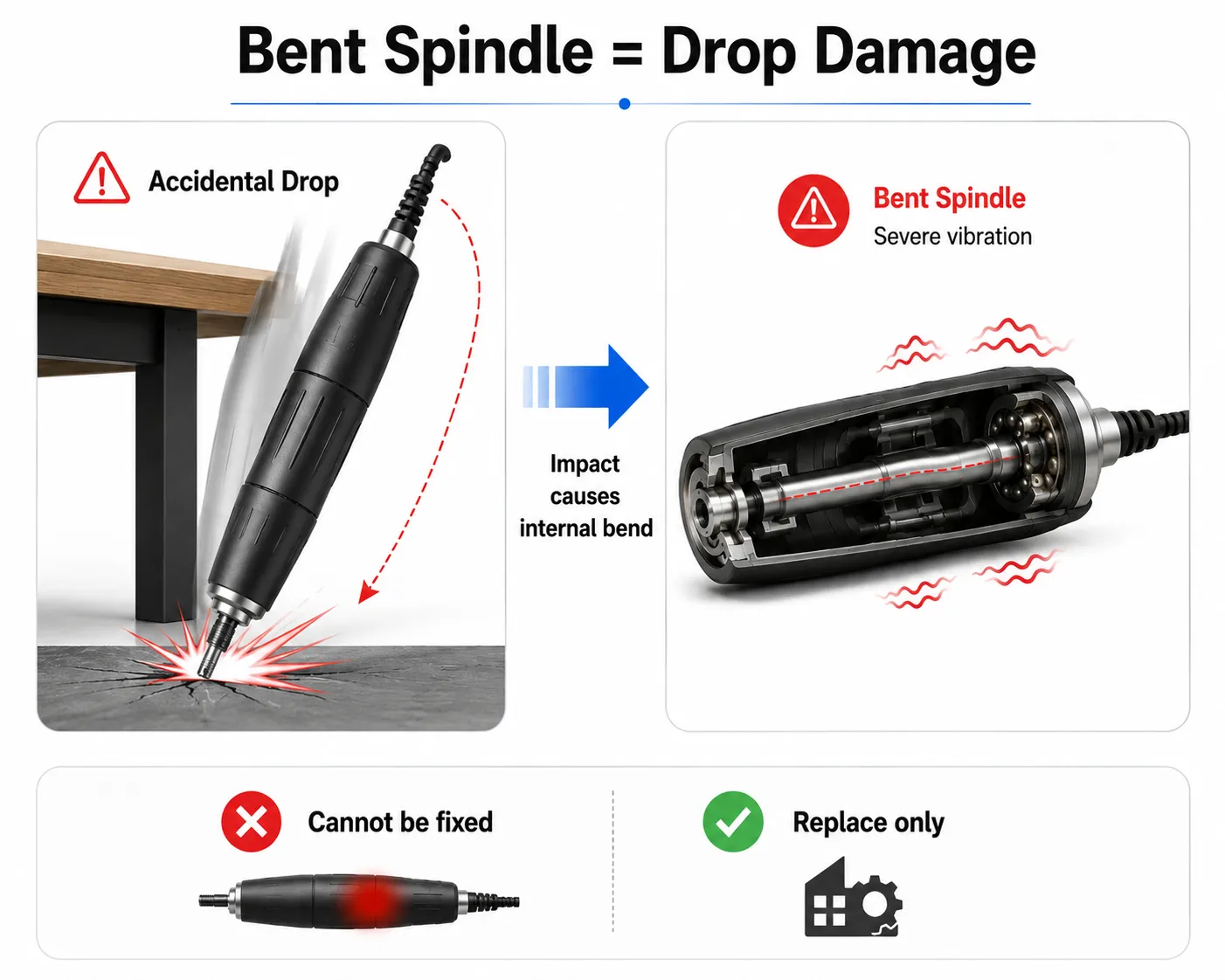

Bent Spindle due to Accidental Drops
Your handpiece is a highly calibrated piece of industrial machinery. If the tool is knocked off a bench tray, the central spindle shaft can easily suffer a micron-level bend. Even if the outer aluminum or plastic casing shows zero physical dents or scratches, a warped internal spindle will generate severe, persistent vibration across all rotational speed ranges. A bent spindle cannot be straightened; it requires a direct factory replacement.
IV. Preventative Care: How to Prevent Future Handpiece Vibration
Protecting your equipment from premature wear requires adjusting a few everyday workshop habits. Implement these structural guidelines to keep your rotary systems running smoothly:
Never close an empty collet: When turning off your workstation or leaving the bench idle for the night, always keep a test rod or a worn bur blank locked inside the chuck. Leaving the locking mechanism engaged on an empty chamber warps the spring jaws, ruining its concentricity.
Avoid aggressive lateral pressure: Micromotor systems are engineered for high-speed, light-touch cutting operations. Avoid excessive lateral pulling, prying, or forcing actions when shaping seats or carving thick prongs. Heavy side-loading forces subject the miniature bearings to intense radial loads they aren’t designed to handle, accelerating bearing failure.
Match RPM to bur size: Always calibrate your operating speed to the physical diameter of the rotary bit being used.
Bur Head Diameter
Recommended Safe Speed Range
Small Internal Burs (0.5–1.5 mm)
High Speed (25,000–40,000 RPM)
Medium Wheel/Setting Burs (1.6–3.0 mm)
Medium Speed (15,000–22,000 RPM)
Large Cup/Large Bud Burs (＞3.0 mm)
Low Speed (≤ 10,000 RPM)
Warnig: Operating large-diameter burs at maximum speed creates massive centrifugal forces that instantly overload and destroy precision internal bearings.
Professional Solutions for Heavy-Duty Jewelry Setting
When a bench handpiece has reached the end of its functional lifecycle due to long-term structural wear, continuing to use it risks damaging expensive stone settings and causes unnecessary muscle fatigue.
If you are looking to upgrade your studio equipment, consider transitioning away from traditional carbon-brushed units. Modern brushless micromotors utilize digital commutation, removing wearable carbon brushes from the internal architecture. This design delivers wear-free internal operation, significantly higher torque at lower speeds, and an incredibly smooth, vibration-free performance that simplifies delicate bead and grain setting.
Are you looking for an ultra-low vibration, high-precision handpiece engineered specifically for micro-pave and intricate stone setting? Browse RHJC’s comprehensive line of professional jewelry micromotors, or reach out to our technical support team to inquire about wholesale options and workshop volume discounts.
