How to Cut Co-Cr Without Stalling Your Dental Micromotor

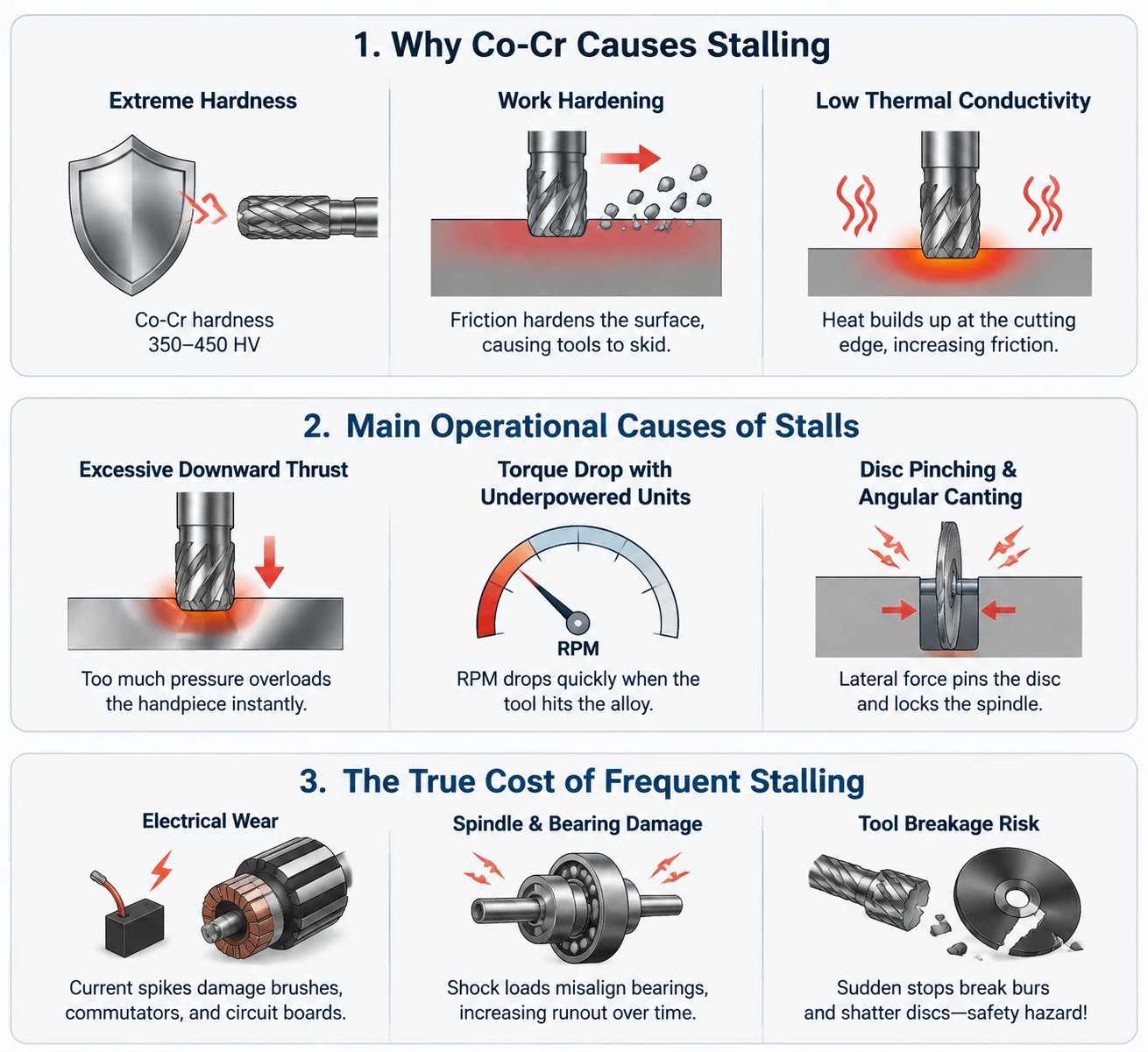

I. Why Does Cutting Co-Cr Easily Cause Dental Micromotor Stalling?

Understanding the physical dynamics between the cutting instrument and the alloy explains why standard rotary tools struggle during heavy dental lab processing.


Extreme Material Toughness and Work Hardening

1. High Surface Hardness: Dental Co-Cr alloys exhibit a Vickers hardness ranging between 350 and 450 HV. This baseline density requires significant tangential shear force from the rotary tool's cutting edge.
2. Work Hardening Tendency: Under friction and pressure, the surface layer of Co-Cr rapidly work-hardens. Continuous dragging without clean chip evacuation creates an increasingly hard barrier, causing cutting flutes to skid rather than bite.
3. Low Thermal Conductivity: Unlike precious metals, Co-Cr dissipates heat poorly. Frictional thermal spikes concentrate directly at the tool-workpiece interface, softening bur flutes, increasing friction coefficients, and dramatically increasing rotary resistance.

Mechanical and Ergonomic Root Causes of Stalls

1. Excessive Downward Thrust: Operators instinctively push harder when cutting progress slows, creating instantaneous mechanical resistance that exceeds the handpiece's maximum torque threshold.
2. Torque Curve Drop-off: Running high-speed jobs on underpowered equipment causes rapid RPM drops the moment the tool engages the alloy.
3. Disc Pinching and Angular Canting: When sectioning sprues with thin discs, minor wrist wobbles introduce lateral shear forces inside the narrow kerf, instantly wedging the disc and locking the spindle.

The True Cost of Frequent Handpiece Stalling

1. Electrical Component Degradation: Sudden stalls create current spikes that pit carbon brushes, glaze commutators, and overheat drive circuit boards.
2. Spindle and Bearing Failure: Shock loading pushes handpiece spindle bearings out of alignment, increasing concentricity runout over time.
3. Tool Breakage Risks: Abrupt stops snap cross-cut carbide teeth and shatter thin cut-off wheels, creating serious workshop hazards.

II. Core Anti-Stall Cutting Techniques for Dental Micromotors

Preventing motor lock-up requires shifting from force-driven grinding to velocity-driven precision cutting.

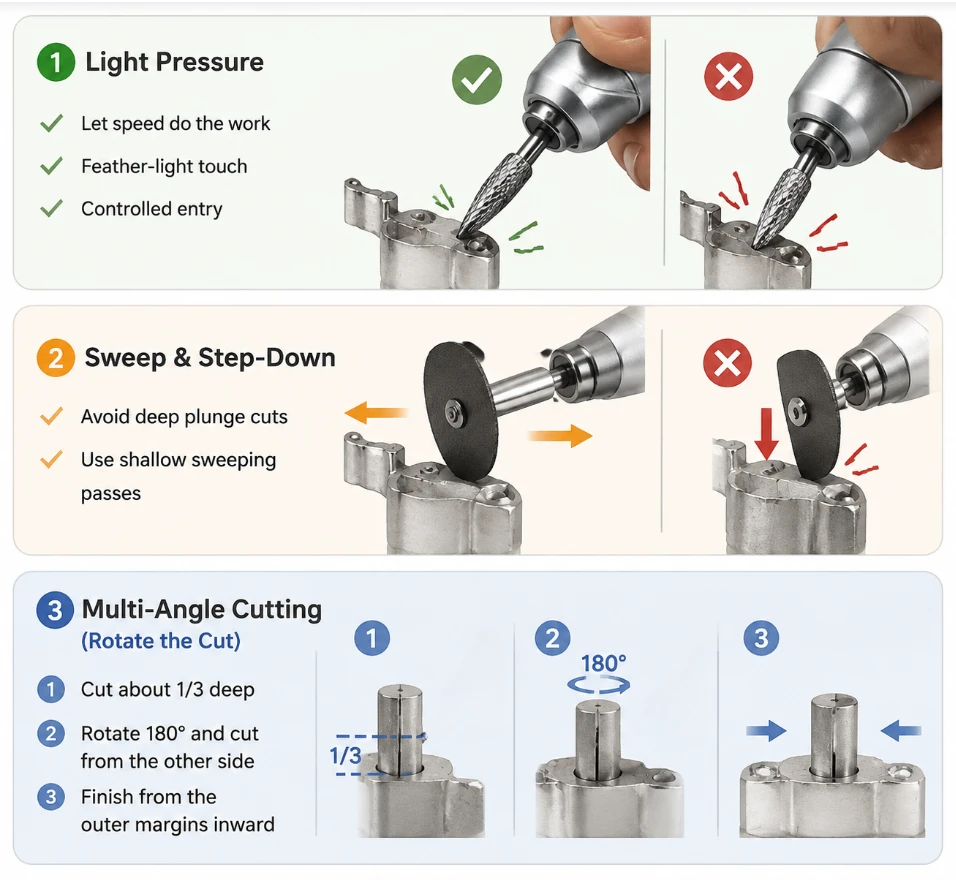

1. Maintain Constant Light Contact Pressure

1. Let Linear Speed Cut: Never force a bur into the alloy. A sharp tool spinning at optimal velocity performs microscopic cuts effortlessly under minimal contact load.
2. Feather-Light Touch: Apply only enough pressure to maintain continuous contact. If cutting slows, check the tool's sharpness rather than pushing harder with your arm.
3. Controlled Entry: Introduce the rotating instrument smoothly against the alloy. Never slam a spinning disc or bur directly onto a sharp sprue margin.

2. Utilize Sweep and Step-Down Strokes

1. Avoid Deep Plunge Cuts: Jamming a cut-off wheel straight down into a thick sprue traps swarf and guarantees disc binding.
2. Shallow Sweeping Motion: Move the cutting disc back and forth across the entire cut line in shallow passes (sweep strokes). This technique creates a wider channel, allows metal chips to eject freely, and keeps friction low.

3. Multi-Angle Circumferential Cutting ("Rotating the Cut")

1. Cut into the sprue to roughly one-third of its total thickness.
2. Rotate the casting 180 degrees and make a matching cut from the opposite side.
3. Finish the cut from the outer margins inward. This keeps the tool working near the surface, preventing deep binding.

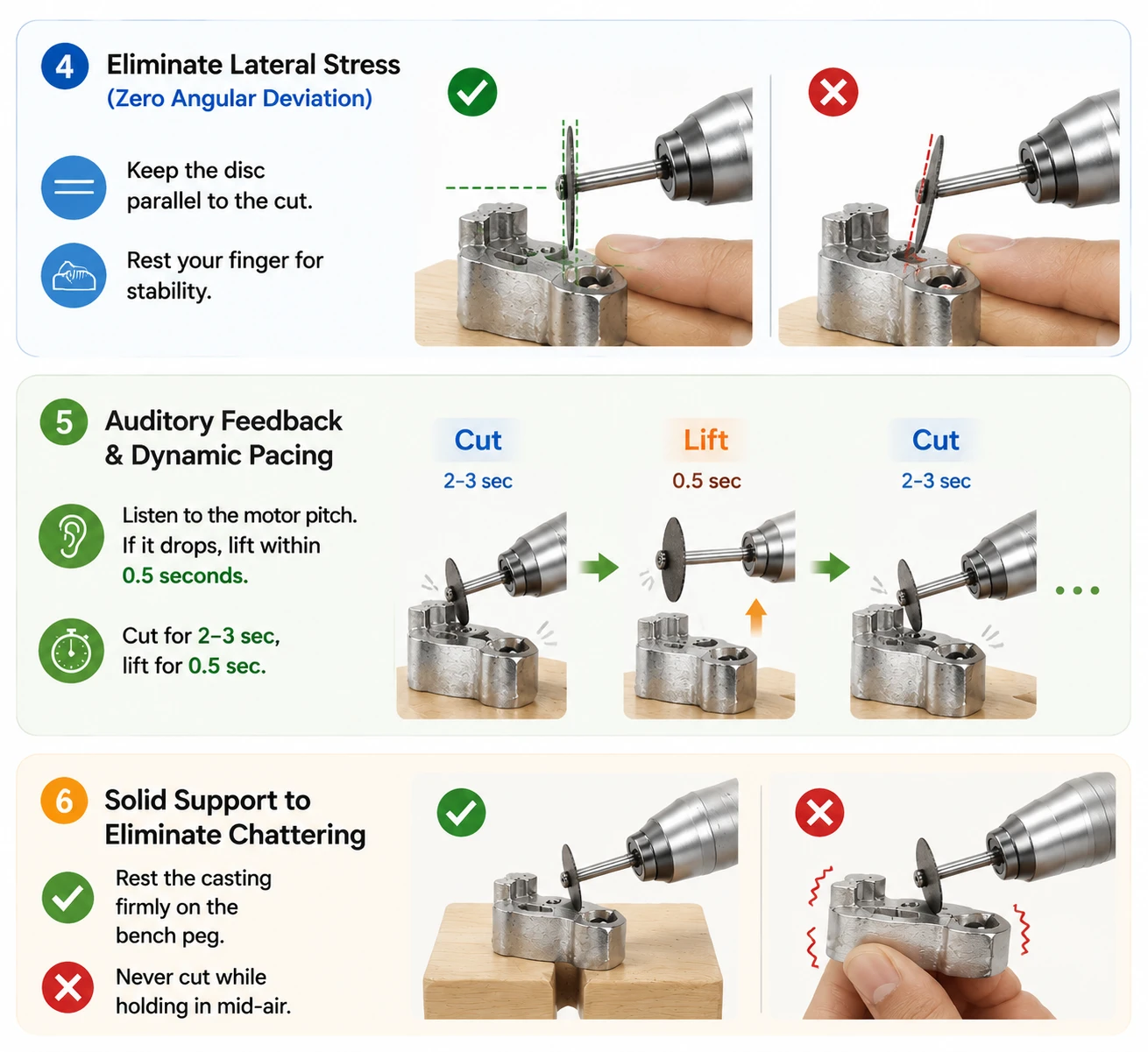

4. Eliminate Lateral Stress (Zero Angular Deviation)

1. Maintain Planar Alignment: When using thin fiber-reinforced discs, keep the handpiece path locked precisely parallel to the kerf. Any tilting or twisting motion wedges the wheel against the slot walls.
2. Establish a Solid Finger Rest: Plant your pinky or ring finger firmly against the casting or bench peg. A stable pivot point prevents micro-tremors from canting the handpiece spindle.

5. Auditory Feedback and Dynamic Pacing

1. Listen to Motor Pitch: A healthy cut produces a consistent, high-frequency hum. If the motor tone deepens or drops in pitch, lift the handpiece within 0.5 seconds to allow RPM recovery.
2. Intermittent Duty Cycle: Use a rhythmic "cut for 2–3 seconds, lift for 0.5 seconds" pattern. This micro-pause clears chips and draws ambient air across the tool interface.

6. Solid Support to Eliminate Chattering

1. Rest the casting firmly against the wooden bench peg.
2. Never cut sprues while holding castings suspended in mid-air. Unsupported workpieces vibrate at high frequencies, creating sudden impact loads that chip bur teeth and stall the handpiece instantly.

III. Dental Burs, Cut-Off Discs, and Speed Parameter Matching

Tool Wear Protocol

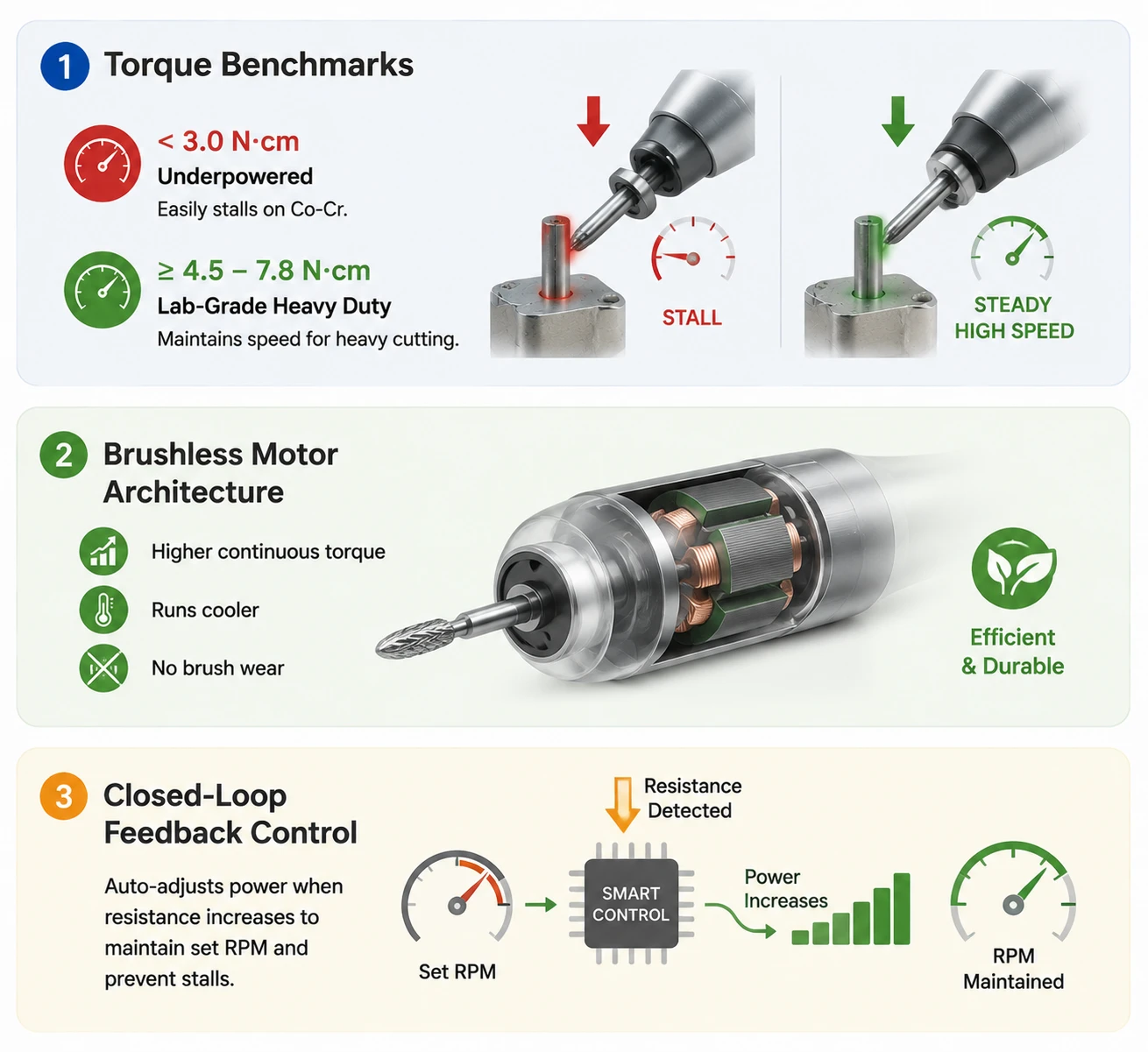

IV. Dental Micromotor Selection: Hardware Requirements for Heavy Co-Cr Cutting

Even flawless hand mechanics cannot overcome hardware that lacks sufficient low-end rotational power.


1. Torque Benchmarks

1. Underpowered Systems (< 3.0 N·cm): Light-duty motors intended for acrylics or nail styling lack the magnetic flux needed for Co-Cr and will stall under minimal contact.
2. Lab-Grade Heavy Duty (≥ 4.5 - 7.8 N·cm): Heavy trimming requires robust torque to maintain speed without bogging down during thick sprue separation.

2. Brushless Motor Architecture

3. Closed-Loop Feedback Control

V. Dental Micromotor Overload Response and Handpiece Maintenance

Proper Response to Overload Alarms

1. Immediately release the foot pedal and disengage the bur from the metal.
2. Clear the error code on the control console.
3. Run the handpiece at moderate RPM with no load for 30 seconds to circulate cooling air through the motor casing.
4. Never attempt to force-restart the motor while the bur remains wedged in the cut.

Collet Chuck Care and Concentricity

1. Disassemble and clean the three-jaw chuck weekly using an ultrasonic cleaner or dedicated chuck brushes.
2. Maintain spindle runout below 0.02 mm. High eccentric runout concentrates all cutting forces onto a single bur tooth, dramatically increasing vibration, rotational drag, and stall frequency.

Thermal Management

Conclusion
