High Torque Brushless Micromotors for Precision Cutting

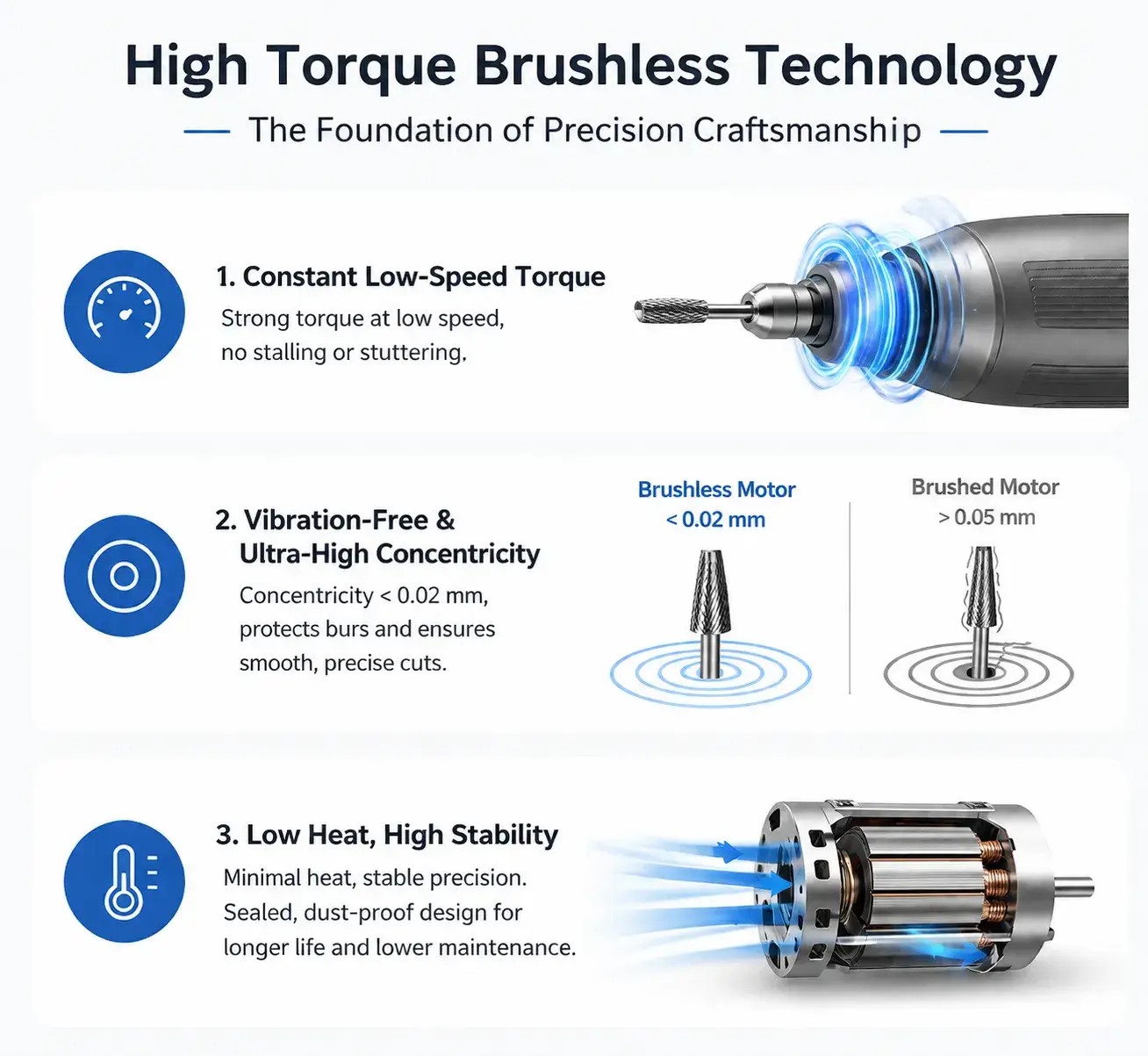

I. How Do "High Torque" and "Brushless" Technology Underpin Precision Craftsmanship?



1. Precision Through Force Control—Constant Low-Speed Torque: Dispelling the industry myth that "higher speed is always better." When carving intricate details at very low speeds, the motor must possess exceptional torque to overcome resistance. Only when the motor maintains speed without stalling or stuttering can technicians maneuver the tool with composure and avoid errors caused by shaky movements.
2. Vibration-Free Experience—Superior Spindle Concentricity: Brushless motors eliminate carbon brush friction through electronic commutation, allowing spindle concentricity to be tightly controlled within minimal tolerances—frequently <0.02 mm—and completely eliminating handpiece vibration. This is crucial for protecting high-value burs, preventing breakage, and ensuring a smooth cutting surface.
3. Temperature Control Equals Precision Control—Brushless Heat Dissipation and ROI: Traditional motors generate excessive heat during heavy-load operation; the resulting thermal expansion of metal components can compromise spindle concentricity. The brushless motor generates minimal heat and features a fully sealed, dust-proof design. It ensures consistent precision around the clock while eliminating carbon brush replacements and reducing downtime.

II. Industry-Standard Technical Specifications

III. How to Leverage "Low-Speed, High-Torque" Operation to Improve Yield Rates

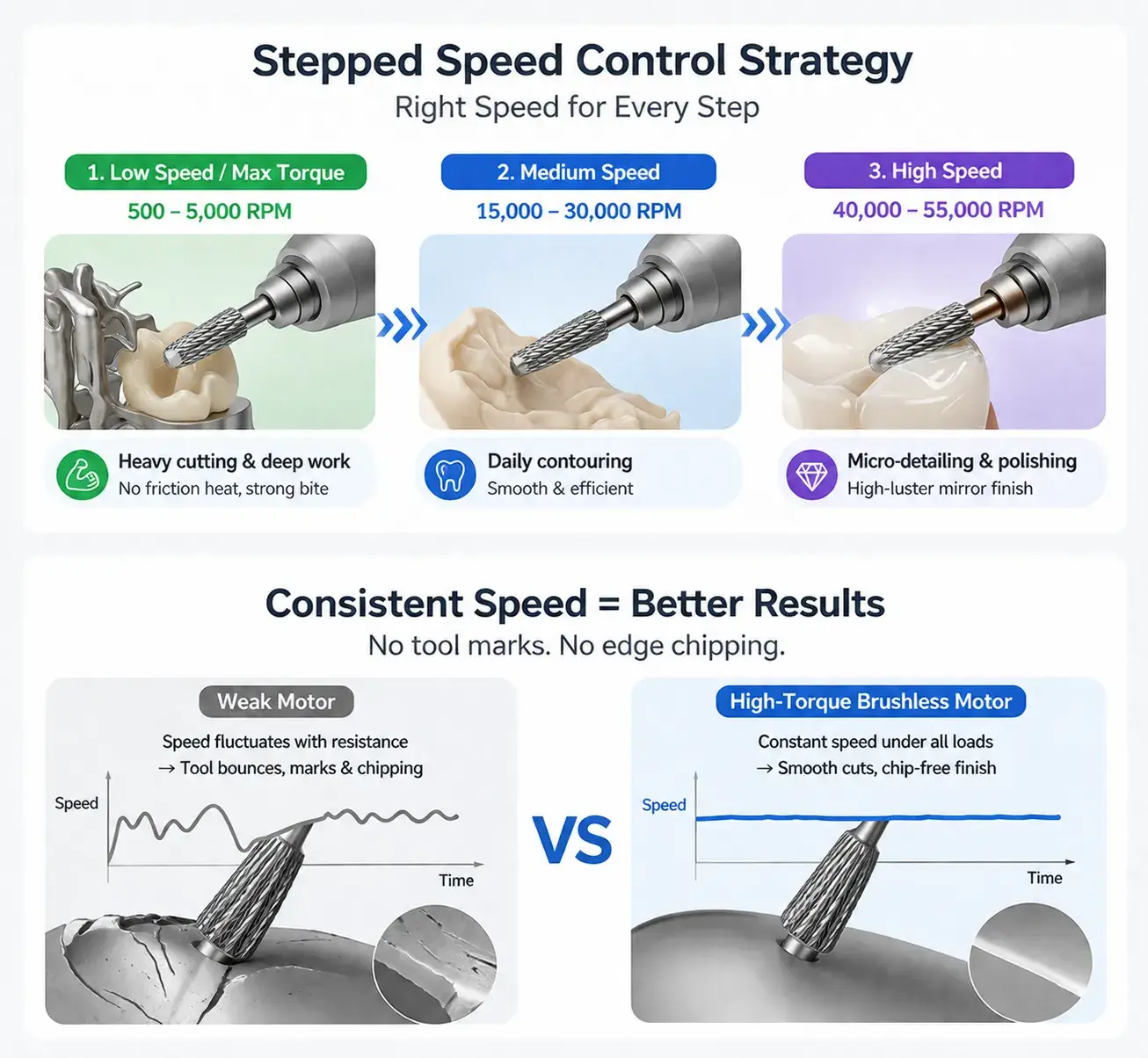

1. Stepped Speed Control Strategy: Don't run every job at full throttle. Use Low Speed / Max Torque (500–5,000 RPM) for cutting heavy metal sprues and dental porcelain to bite deep without creating friction heat. Switch to Medium Speed (15,000–30,000 RPM) for everyday contouring, and reserve High Speed (40,000–55,000 RPM) strictly for final micro-detailing and high-luster mirror polishing.
2. Avoiding "Tool Marks" and "Edge Chipping": Tool marks happen when a weak handpiece slows down on hard parts and surges on soft parts, causing the bur to bounce. A high-torque brushless motor utilizes intelligent constant-speed feedback to read resistance thousands of times per second. Whether cutting soft wax or hard chrome-cobalt, the tool speed stays identical, leaving a smooth, chip-free finish.

IV. Industry Application Guide

1. Dental Laboratories: Designed for high-intensity, prolonged heavy grinding and fine finishing of high-hardness restorations, such as all-ceramic crowns, zirconia, and cobalt-chrome alloys. It allows smooth shaping without risking microscopic stress cracks on thin margins.
2. Jewelry Manufacturing & Micro-Pave Setting: Essential for high-precision master model creation and edge trimming on platinum and karat gold. The true concentricity cuts perfectly round holes, ensuring diamonds snap in securely during delicate micro-pave layouts with zero skipped gems.
3. Precision Industrial Mold Making: Provides the rigid, vibration-free power delivery needed for detailed deburring and fine-tuning of hardened tool steels inside deep, tight cavity recesses.

V. PRIME SENSE A9: High-Torque Brushless System

If you need a real-world machine built for this level of daily bench work, the PRIME SENSE A9 sets the standard:


1. Heavy-Duty Performance: Boasts a heavy-duty 240W motor and a peak speed of 55,000 RPM, shifting instantly from aggressive metal grinding to feather-touch detailing.
2. Exceptional Torque Control: Supports ultra-low-speed fine-tuning starting down at 500 RPM while maintaining a locked, unyielding torque of 8.5 N·cm—perfectly meeting the requirement for precision through controlled power.
3. Smart Safety Features: Built-in automatic overload protection and real-time fault alert systems instantly cut power if a bur jams, preventing handpiece burnout and costly repair delays.
4. Innovative Bluetooth Connectivity: Equipped with a highly responsive wireless Bluetooth foot pedal, eliminating tangled cable clutter beneath your technician's bench for a clean, focused workspace.
